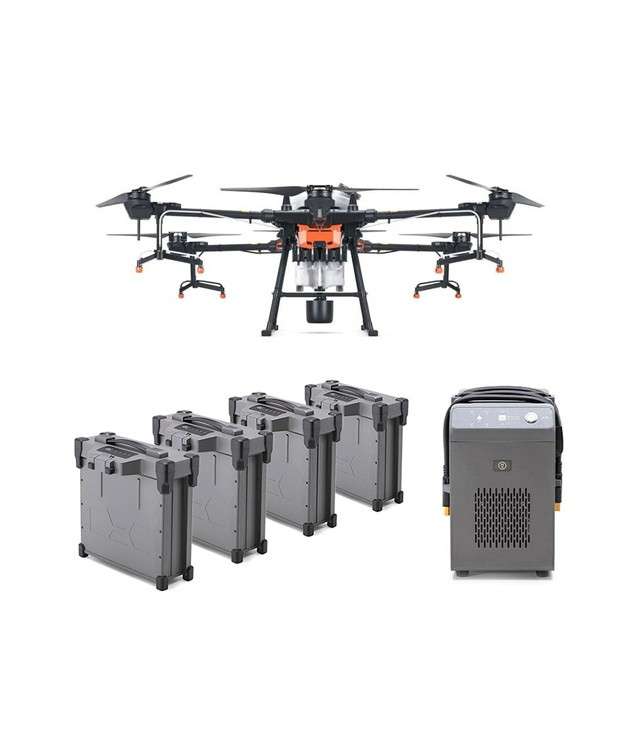

DJI Agras T20 Combo Agriculture Drone with 4 Batteries and Charger

Add to wishlist
Compare
  • 20L Spray Tank;
  • Autonomous High-Precision Operation;
  • IP67 Rating for Core Modules;
  • Omnidirectional Digital Radar;
  • Real-Time Visual Monitoring System;
  • AI Intelligent Agriculture Engine.

£7,650

Agras T20
Flight Parameters
Total Weight (Excluding battery) 21.1 kg
Standard Takeoff Weight 42.6 kg
Max Takeoff Weight 47.5 kg (at sea level)
Max Thrust-Weight Ratio 1.70 (with a takeoff weight of 47.5 kg)
Hovering Accuracy (With a strong GNSS signal)
  • D-RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm
  • D-RTK disabled: Horizontal: ±0.6 m, Vertical: ±0.3 m (Radar module enabled: ±0.1 m)
RTK/ GNSS Operating Frequency RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5 [1] GNSS: GPS L1, GLONASS F1, Galileo E1 [1]
Max Power Consumption 8300 W
Hovering Power Consumption 6200 W (with a takeoff weight of 47.5 kg)
Hovering Time[2] 15 min (takeoff weight of 27.5 kg with a 18000 mAh battery) 10 min (takeoff weight of 42.6 kg with a 18000 mAh battery)
Max Tilt Angle 15°
Max Operating Speed 7 m/s
Max Flying Speed 10 m/s (with a strong GNSS signal)
Max Wind Resistance 8 m/s
Max Service Ceiling Above Sea Level 2000 m
Recommended Operating Temperature 0° to 40°C
Airframe
Max Diagonal Wheelbase 1883 mm
Dimensions
  • 2509×2213×732 mm (Arms and propellers unfolded)
  • 1795×1510×732 mm (Arms unfolded and propellers folded)
  • 1100×570×732 mm (Arms and propellers folded)
Propulsion System – Motor
Stator Size 100×15 mm
Weight 666 g
Propulsion System
KV 75 rpm/v
Max Thrust 13.5 kg/rotor
Max Power 2400 W/rotor
Weight (Single propeller) 90 g
Propulsion System – Propellers
Diameter × Pitch 33×9 in
Propulsion System – ESC
Max Working Current (Continuous) 40 A
Max Working Voltage 58.8 V(14S LiPo)
FPV Camera
FOV Horizontal: 98°, Vertical: 78°
Resolution 1280×960 30fps
FPV Spotflight
Max Brightness 12 lux at 5 m of direct light
Spraying System
Spray Tank Volume Rated: 15.1 L, Full: 20 L
Operating Payload Rated:15.1 kg, Full:20 kg
Spraying System – Nozzle
Nozzle Model SX11001VS(standard) SX110015VS(optional) XR11002VS(optional)
Quantity 8
Max Spray Rate SX11001VS: 3.6 L/min SX110015VS: 4.8L/min XR11002VS: 6 L/min
Droplet Size SX11001VS: 130-250 μm SX110015VS: 170-265 μm XR11002VS: 190-300 μm (related to the actual working environment, spraying flow, etc.)
Spray Width 4-7 m (8 nozzles, at a height of 1.5 – 3 m above crops)
Spraying System – Flow Meter
Measurement Range 0.25-20 L/min
Error <±2%
Measurable Liquid Conductivity > 50 μS/cm (Liquids such as water or pesticides that contain water)
High Precision Radar Module
Model RD2428R
Operating Frequency
  • CE (Europe)/(United States): 24.00 GHz-24.25 GHz
  • MIC (Japan)/KCC (Korea): 24.05 GHz-24.25 GHz
Power Consumption 18W
EIRP MIC/KCC/CE /FCC: <20 dBm
Altitude Detection & Terrain Follow[3]
  • Altitude detection range: 1-30 m
  • Stabilization working range:1.5-15 m
  • Maximum slope of hill mode: 35°
Obstacle Avoidance System[3] Altitude detection range: 1.5-30 m FOV: Horizontal: 360°, Vertical: ±15° Condition: Relative altitude higher than 1.5 m, operation speed lower than 7 m/s Safe distance: 2.5m (distance between the propeller tip and the obstacle after the aircraft stops) Obstacle-avoiding direction: Omnidirectional obstacle sensing operates horizontally and covers 360°
IP Rating IP67
T20 Intelligent Flight Battery
Model AB3-18000mAh-51.8V
Weight 6.4 kg (approximately)
Discharge Rate 9 C
IP Rating IP54
Capacity 18000 mAh
Voltage 51.8 V
Remote Controller
Model RM500-AG
OcuSync 2.0 Operating Frequency[4]
  • 2.4000-2.4835 GHz
  • 5.725-5.850 GHz
OcuSync 2.0 Effictive Transmission Distance(Unobstructed, free of interference) SRRC/MIC/KCC/CE: 3 km NCC/FCC: 5km (Operation height: 2.5 m)
OcuSync 2.0 Transmission Power (EIRP) 2.4 GHz SRRC/CE/MIC/KCC: 18.5 dBm, FCC: 25.5 dBm; 5.8 GHz SRRC/FCC: 25.5 dBm
WIFI Protocol Wi-Fi Direct, Wireless Display, 802.11a/g/n/ac, and Wi-Fi with 2×2 MIMO is supported
Wi-Fi Operation Frequency Range[4]
  • 2.4000-2.4835 GHz
  • 5.150-5.250 GHz
  • 5.725-5.850 GHz
WIFI Transmission Power (EIRP) 2.4 GHz SRRC/CE: 18.5 dBm; FCC/MIC/KCC: 20.5 dBm; 5.2 GHz SRRC/FCC/CE/MIC: 14 dBm; KCC:10 dBm; 5.8 GHz SRRC/FCC: 18 dBm; CE/KCC: 12 dBm
Bluetooth Protocol Bluetooth 4.2
Bluetooth Operating Frequency 2.4000-2.4835 GHz
Bluetooth Transmission Power (EIRP) SRRC/MIC/FCC/CE/KCC: 6.5 dBm
GNSS GPS+GLONASS
Display Device 5.5-inch screen 1920×1090 pixels Brightness: 1000 cd/m² Android System
Random Access Memory, RAM 4GB LPDDR4
Storage Capacity ROM 32GB + microSD, supports microSD cards with a capacity of up to 128 GB and R/W speed up to UHS-I Speed Grade 3
HDMI HDMI 1.4
Supported Aircraft Agras T20
Power Consumption 18 W
Operation Temperature Range ‐10° to 40°C
Storage Temperature Range
  • < 1 month: -30° to 60°C
  • 1-3 months: -30° to 45°C
  • 3-6 months: -30° to 35°C
  • > 6 months: -30° to 25°C (Built-in battery power 40% to 60%)
Charging Temperature 5° to 40°C
Remote Controller – Internal Battery
Battery Type 18650 Li-ion (5000 mAh @ 7.2 V)
Working Time 2 hours
Charging Time 2.5 hours (using a standard USB power adapter rated 12 V/2 A)
Power Supply Current/Voltage (USB-A port) 5 V/ 1.5 A
Model WB37-4920mAh-7.6V
Remote Controller – Intelligent Battery
Charge Type Supports USB power fast charge adapters rated 12 V/2 A
Battery Type 2S LiPo
Capacity 4920 mAh
Voltage 7.6 V
Energy 37.39 Wh
Charging Temperature 5° to 40°C
Charging Time 2 hours
Remote Controller – Intelligent Battery Charging Hub
Model WCH2
Input Voltage 17.3-26.2 V
Output Voltage and Current 8.7 V, 6 A
Operating Temperature 5° to 40°C
Remote Controller – Intelligent Battery Charging Hub Power Adapter
Model A14-057N1A
Input Voltage 100 – 240 V, 50/60 Hz
Output Voltage 17.4 V
Rated Power 57 W
