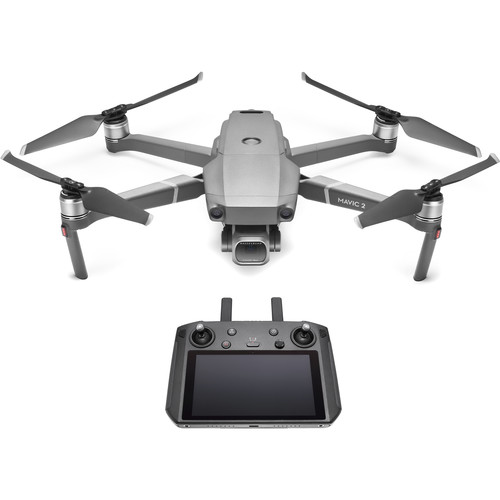

DJI Mavic 2 Pro Specs
Performance
| Maximum Takeoff Weight | 2.00 lb / 907 g |
| Maximum Horizontal Speed | 44.7 mph / 72 km/h (S-Mode) |
| Maximum Ascent Speed | 16.4 ft/s / 5 m/s |
| Maximum Descent Speed | 9.8 ft/s / 3 m/s |
| Maximum Wind Resistance | 23.6 mph / 38 km/h |
| Flight Ceiling | 3 mi / 6000 m |
| Maximum Flight Time | 31 Minutes |
| Maximum Hover Time | 29 Minutes |
| Maximum Tilt Angle | 35° |
| Hovering Accuracy | ±0.33′ / 0.1 m Vertical with Vision Positioning ±1.64′ / 0.5 m Vertical with GPS ±0.98′ / 0.3 m Horizontal with Vision Positioning ±4.92′ / 1.5 m Horizontal with GPS |
Flight Control System
| GNSS Support | GPS, GLONASS |
3D Object Detection
| Operating Range | 36.1 to 131.2′ / 11.0 to 40.0 m |
| Required Object Reflectivity | >20% |
Vision System
| Vision System | Downward, Forward, Backward, Left, Right |
| Operating Range | 1.6 to 131.2′ / 0.5 to 40.0 m |
| Obstacle Sensory Range | 36.1 to 131.2′ / 11.0 to 40.0 m |
| Forward Field of View | 40° (Horizontal) 70° (Vertical) |
| Backward Field of View | 60° (Horizontal) 77° (Vertical) |
| Operating Environment | Surface with Clear Patterns at >15 lux |
Remote Controller / Transmitter
| Operating Frequency | 2.4 GHz (2.400 – 2.483) 5.8 GHz (5.725 – 5.850) |
| Maximum Operating Distance | 4.97 Miles / 8 km at 2.4 G 4.97 Miles / 8 km at 5.8 G |
| Transmitter Power | 25.5 dBm (2.4 G) 25.5 dBm (5.8 G) |
| Connectivity | 1 x HDMI 1 x USB Type-A |
| Output Power | 15 W |
| Battery Type | 1 x Built-In |
| Battery Chemistry | Lithium-Ion |
| Battery Capacity | 5000 mAh |
| Battery Configuration | 2 S / 7.2 V |
| Built-In Display Size | 5.5″ |
| Display Resolution | 1920 x 1080 |
| Display Brightness | 1000 cd/m² |
| Operating Temperature | -4 to 104°F / -20 to 40°C |
| Charging Temperature | 41 to 104°F / 5 to 40°C |
Camera
| Sensor | 1″ CMOS |
| Effective Pixels | 20 MP |
| Lens Field of View | 77° |
| Aperture | f/2.8 to 11 |
| Minimum Focusing Distance | 3.3′ / 1.0 m |
| Photo ISO Range | 100 to 3200 (Auto) 100 to 12,800 (Manual) |
| Video ISO Range | 100 to 6400 (Auto) |
| Electronic Shutter Speed | 8 to 1/8000 Second |
| Photo Resolution | 3:2: 5472 x 3648 |
| Photo Format | JPEG, DNG |
| Video Format | 3840 x 2160p at 24/25/30 fps 2688 x 1512p at 24/25/30/48/50/60 fps 1920 x 1080p at 24/25/30/48/50/60/120 fps |
| Recording Media | microSD (up to 128 GB) |
| Photo Modes | Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot |
Gimbal
| Number of Axes | 3 (Pitch, Roll, Yaw) |
| Control Range | Pitch: -90 to 30° Yaw: -75 to 75° |
| Angular Speed | Pitch: 120°/s |
Flight Battery
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Capacity | 3850 mAh / 59.29 Wh |
| Battery Configuration | 4 S / 15.4 V |
| Maximum Charging Power | 80 W |
| Charging Temperature | 41 to 104°F / 5 to 40°C |
| Weight | 10.48 oz / 297 g |
Charger
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.8 A |
| Output Voltage | 17.6 V, 3.41 A 17 V, 3.53 A 5 V, 2 A |
| Power Rating | 60 W |
General
| Number of Rotors | 4 |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Overall Dimensions | 3.6 x 3.3 x 8.4″ / 91.0 x 84.0 x 214.0 mm (Folded) 9.5 x 3.3 x 12.7″ / 242.0 x 84.0 x 322.0 mm (Unfolded) |
Packaging Info
| Package Weight | 6.61 lb |
| Box Dimensions (LxWxH) | 11.3 x 11.05 x 4.45″ |
