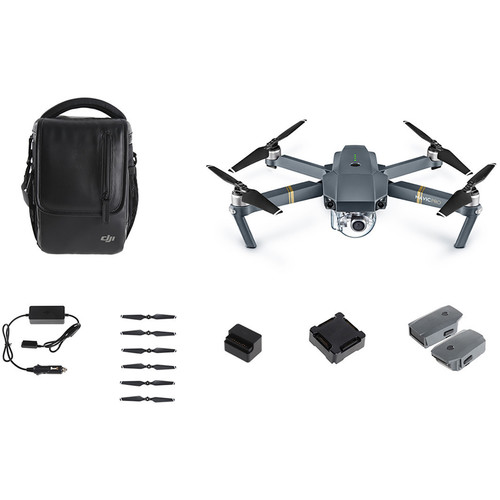

DJI Mavic Pro Specs
Performance
Maximum Speed | Sport Mode: 40 mph / 65 km/h (no wind) |
Maximum Ascent Speed | Sport Mode: 16.4 ft/second (5 m/second) |
Maximum Descent Speed | Sport Mode: 9.8 ft/second (3 m/second) |
Flight Ceiling | 16,404′ / 5000 m above sea level |
Flight Time | Up to 27 minutes (no wind at a consistent 15.5 mph / 25 km/h) |
Hover Time | Up to 24 minutes (no wind) |
Flight Distance | Up to 8′ / 13 km (no wind) |
Flight Control System
GPS Mode | GPS / GLONASS |
Obstacle Detection System
Sensor Range | Precision Measurement Range: 2 to 49′ / 0.7 to 15 m Detectable Range: 49 to 98′ / 15 to 30 m |
Vision Positioning
Velocity Range | Up to 22.4 mph (36 km/h) at 6.6′ (2 m) above ground level |
Altitude Range | 1 to 43′ / 0.3 to 13 m |
Operating Environment | Surface with clear pattern and adequate lighting (> 15 lux) |
Radio Controller
Frequency | 2.4 to 2.483 GHz |
Communication Distance | 4.3 miles / 7 km (line-of-sight) |
Transmit Power | Up to 26 dBm |
Operating Current | 950 mA at 3.7 V |
Battery | Chemistry: Lithium-ion polymer (LiPo) Capacity: 2970 mAh |
Mobile Device Holder | Thickness Supported: 0.24 to 0.33″ / 6.5 to 8.5 mm Max Length: 6.3″ / 160 mm Supported USB Port Types: Lightning, micro-USB, USB Type-C |
Camera
Sensor | Type: 1/2.3″ CMOS Effective Pixels: 12.35 million Total Pixels: 12.71 million |
Lens | FOV: 78.8° Focal Length: 28 mm (35 mm format equivalent) Aperture: f/2.2 Distortion: < 1.5% Focus Range: 1.6′ (0.5 m) to ∞ |
ISO Range | Video: 100 to 3200 Photo: 100 to 1600 |
Electronic Shutter Speed | 8 second to 1/8000 second |
Photo Resolution | Up to 4000 x 3000 (12 MP) |
Photo Modes | Single shot Burst shooting: 3/5/7 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV bias Interval |
Video Resolutions | DCI 4K (4096 x 2160): 24p UHD 4K (3840 x 2160): 24/25/30p 2.7K (2704 x 1520): 24/25/30p FHD (1920 x 1080): 24/25/30/48/50/60/96p HD (1280 x 720): 24/25/30/48/50/60/120/180p |
File Formats | Video: MPEG-4 AVC/H.264 in MOV wrapper Photo: JPEG, DNG RAW |
Recording Media | 60 Mbps |
Recording Media | Type: microSDHC/SDXC card up to 64 GB Format: FAT32 / exFATNote: Class 10/U1/V10 or faster card required (64 GB maximum size) |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Gimbal
Number of Axes | 3-axis (pitch, roll, yaw) |
Control Range | Pitch: -90° to +30° Roll: 0° / 90° (horizontally / vertically) |
Flight Battery
Chemistry | Lithium-ion polymer (LiPo) |
Capacity | 3830 mAh / 43.6 Wh |
Configuration | 3 S |
Voltage | 11.4 V |
Maximum Charging Power | 100 W |
Operating Temperature | 41 to 104°F / 5 to 40°C |
Weight | 0.5 lb / 240 g |
Charger
Output Voltage | 13.05 V |
Rated Power | 50 W |
General
Operating Temperature | 32 to 104°F / 0 to 40°C |
Weight | Including Battery and Propellers: 1.62 lb / 734 g (excluding gimbal cover) 1.64 lb / 743 g (including gimbal cover) |
Packaging Info
Package Weight | 7.1 lb |
Box Dimensions (LxWxH) | 12 x 10.6 x 10.3″ |
