8dBi Fiberglass Antenna Bundle

Product Description

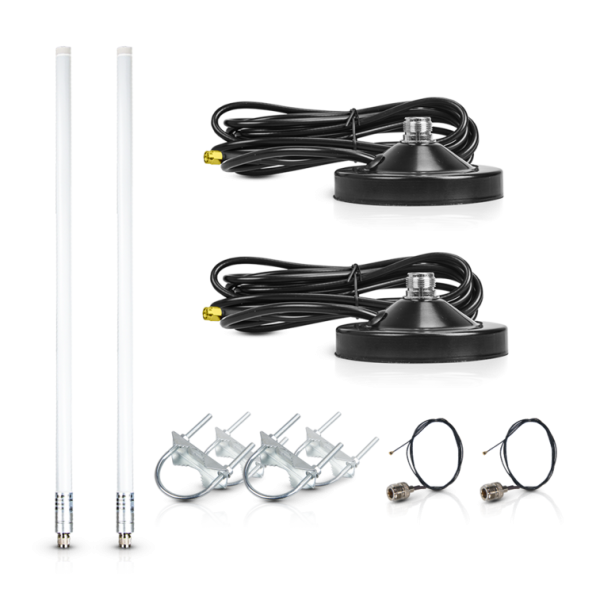

This bundle consists of 8dBi fiberglass antennas and an Antenna magnetic base for LoRa®.

To choose the appropriate antenna with regards to the LoRa frequency of your region, please refer to the TTN’s guide, and/or the Regional Parameters Documentation provided by the LoRa Alliance.

Product Notice:

The antenna magnetic base is not suitable for mounting outside. This is due to the fact that it is not water-tight and high moisture levels would eventually damage it and result in an inoperable installation. RAKwireless recommends only use it in indoor conditions away from wet environments.
This antenna cannot be used for the EU433 and CN470 frequencies.

Connector Options

IPEX: Small connector found on our concentrator cards like the RAK2287
RP-SMA: Connector found on our commercial and developer gateways, RAK Hotspot Miner and Helium™ Hotspot

Product Features


Frequency	858-878MHz	900-930MHz
Gain	8.0 dBi (±1dBi)	8.0 dBi
VSWR	≤1.5	≤1.5
Beamwidth	360 degrees	360 degrees
Impedance	50 Ohms	50 Ohms
Polarization	Vertical	Vertical
Radome Body	Fiberglass	Fiberglass
Connector Type	N-Type Male	N-Type Male
Antenna Dimensions	1300 ± 15mm	900 ± 25mm
Operation Temperature	-30°C~65°C	-30°C~65°C
Storage Temperatures	-30°C~75°C	-30°C~75°C
