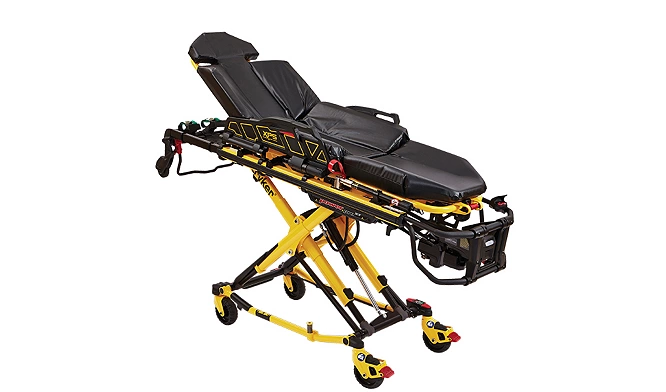

Stryker Power-PRO XT Ambulance Cot

The Stryker Power-PRO XT Ambulance Cot includes a brake, two lap belts, one four-point shoulder restraint, and a mattress.

Warranty: 90 Days – Parts and Labor.

The Power-PRO XT is a powered wheeled stretcher intended to support and transport the entire body of a traumatized, ambulatory, or non-ambulatory human patient (includes infants and adults) with an innovative battery-powered hydraulic system that raises and lowers the patient with the touch of a button. It consists of a platform mounted on a wheeled X-frame designed to support and transport a maximum of 700 lb (318 kg) in pre-hospital and hospital environments. It is collapsible for use in emergency vehicles and has an adjustable load height feature to allow the device to be set to different ambulance deck heights for proper body mechanics during loading and unloading.

The NiCd battery-powered hydraulic lift system allows operators to raise and lower the cot using the powered controls, while duplicate foot-end controls on the upper and lower bars accommodate different operator positions or sizes. It is also equipped with a manual back-up release handle to allow the operation of cot functions in the event of power loss.

Features

Stryker Power-PRO XT Ambulance Cot Features

• Reducing Spinal Load: The industry-leading Power-PRO XT powered ambulance cot dramatically reduces strenuous lifting and the associated risk of back injury. Medics experience frequent spinal loading due to repetitive motions such as lifting, lowering, carrying, and bending. Use of the Power-PRO XT has proven to reduce spinal loading, resulting in reduced injuries, lost or modified workdays, and workers’ compensation costs, and increased recruitment and retention.
• Powered Hydraulics: The innovative battery powered hydraulic system raises and lowers patients with the touch of a button. The Stryker Power-PRO XT sets the standard for superior performance and outstanding ergonomics.
• Power Loss Back-Up: Easy to use manual back-up system provides complete cot operation in the event of power loss.
• Easily Accessible Battery: Foot end mounted battery is accessible and easily changed in any situation.
• Retractable Head Section: Allows cot to be shortened in any height position for maximum versatility.
• High-Speed Retract: Exclusive automatic high speed retract feature reduces load and unload times.

Specifications

Stryker Power-PRO XT Ambulance Cot Specifications

• Weight Capacity: 700 lb (318 kg).
• Maximum Unassisted Lift Capacity: 500 lb (225 kg).
• Backrest Articulation/Shock Position: 0 to 73° / + 15°.
• Overall Length: 81″ (206 cm).
• Minimum Length: 63″ (160 cm).
• Width: 23″ (58 cm).
• Height: Adjustable from 14 to 41.5″ (36 to 105 cm).
• Weight: 125 lb (57 kg).
• Caster Diameter: 6″ (15 cm).
• Caster Width: 2″ (5 cm).
• Minimum Operators Required for Loading/Unloading:
  • Occupied Cot: 2.
  • Unoccupied Cot: 1.
• Recommended Fastener Systems:
  • Stryker:
    • Model 6370 or 6377 Floor Mount Type.
    • Model 6371 Wall Mount Type.
    • Model 6390 Power-LOAD.
  • Ferno 175 Fastening System.
• Recommended Loading Height: Up to 36″ (91 cm).
• Recommended Working Height (excluding mattress): 15.75″ (40 cm).
• Knee Gatch (optional): 30°.
