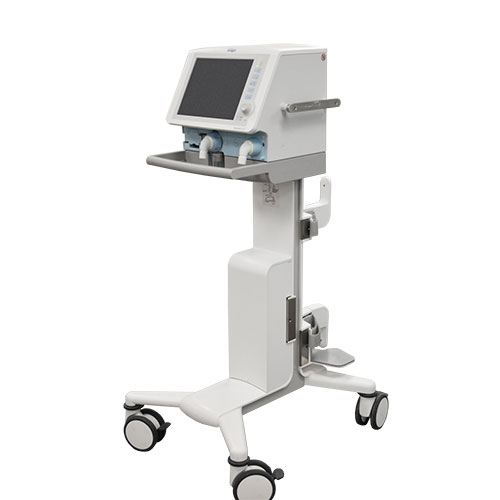

Drager Savina 300 Ventilator


Drager Savina 300 Features

The Drager Savina 300 Ventilator was designed as a turbine-driven ventilation system. With the technology of a Turbine built in the Savina 300 can offer quick presence times and deliver continuous high flow ventilation – up to 250 l/min. The system offers non-invasive ventilation for both adults and pediatric patients. The Savina 300 Ventilator offers a variety of different ventilation modes, volume, and pressure support along with spontaneous breathing support. The system has a highly effective sensitive leak management incorporated into the ventilation system reducing ventilation times. The Drager Savina 300 comes with a large color touchscreen which makes it easier to configure to each individual patient’s needs.



  • Intuitive for simple operation and quick configuration
  • Draeger-wide standardized user interface provides confidence in use and reduces training time
  • Quick operational readiness with an automatic device check
  • Intelligent alarm handling for a quick response to patient alarm situations
  • Smooth and sealed surfaces for easy cleaning and disinfection
  • Huge range of ventilation modes (e.g. PC-APRV, VC-MMV, AutoFlow)
  • Stress-free spontaneous breathing with excellent trigger response time thanks to the turbine
  • Free breathing with AutoFlow in volume constant ventilation at a minimum pressure level



Drager Savina 300 Specifications



Ventilation Modes

  • VC-CMV / VC-AC
  • VC-SIMV
  • VC-MMV (optional)
  • PC-APRV (optional)
  • PC-BIPAP1) / PC-SIMV (optional)
  • PC-AC (optional)
  • SPN-CPAP

Optional Enhancements

  • AutoFlow – Automatic adaption of the inspiratory flow in volume orientated ventilation modes
  • NIV – Non Invasive Ventilation with optimized alarm systems and automatic leakage compensation
  • Capnography – Mainstream CO2 measurement
  • MonitoringPlus – Loops, Trends, user Logbook
  • LPO – Low Pressure Oxygen. Independant oxygen supply
  • Nurse call – Connection for transmitting alarm signals to a central, alarm system

General

  • Patient type: Adult, pediatric
  • Respiratory rate: 2/min to 80/min
  • Inspiration time: 0.2 to 10 s
  • Tidal volume: 0.05 to 2.0 L, BTPS2) with option PediatricPlus 0.02 to 2.0 L
  • Inspiratory pressure:: 1 to 99 mbar (or hPa or cmH2O)
  • PEEP/interm. PEEP 0 to 50 mbar (or hPa or cmH2O)
  • Pressure support/ΔPsupp: 0 to 50 mbar (or hPa or cmH2O) (relative to PEEP)
  • Flow acceleration: 5 to 200 mbar/s (or hPa/s or cmH2O/s)
  • O2-concentration: 21 to 100 Vol. %
  • Trigger sensitivity (Flow trigger): 1 to 15 L/min
  • Inspiratory termination criterion: 5 to 75 % PIF (peak inspiratory flow)
  • PC-APRV (optional):
    • Inspiratory time Thigh 0.2 to 22.0 s
    • Expiratory time Tlow 0.1 to 22.0 s
    • Inspiratory pressure Phigh 1 to 95 mbar (or hPA or cmH2O)
    • Expiratory pressure Plow 0 to 50 mbar (or hPA or cmH2O)

Displayed Measured Values

  • Airway pressure measurements Max. airway pressure, plateau pressure, mean airway pressure, PEEP 0 to 99 mbar (or hPa or cmH2O)
  • Minute volume (MV): Total MV, spontaneous MV 0 to 99 L/min, BTPS
  • Tidal volume: Inspiratory VT, expiratory VTe, VTspon 0 to 3999 mL, BTPS
  • Total respiratory rate: Total and spontaneous respiratory rate, 0 to 150/min
  • Inspiratory O2-concentration: 21 to 100 % Vol.
  • End-tidal CO2 concentration: EtCO2 0 to 100 mmHg (or 0 to 13.2 Vol% or 0 to 13.3 kPa)
  • Breathing gas temperature: 18 to 48 °C (64.4 to 118.4 °F)
  • Curve displays: Paw(t), Flow (t), Tidal volume (t), CO2 (t)
  • Ventilation ratio (I:E): 1:150 to 150:1
  • Compliance C: 0.5 to 200 mL/mbar (or mL/hPa or mL/cmH2O)
  • Resistance R: 3 to 300 mbar/L/s (or hPa/L/s or cmH2O/L/s)
  • Leakage minute volume MVleak: 0 to 100 %
  • Rapid shallow breathing RSB: 0 to 9999 (1/min/L)
  • Special Maneuvers (optional):
    • Intrinsic PEEP PEEPi 0 to 100 mbar (or hPa or cmH2O)
    • Exp. Hold

Alarms

  • Airway pressures: high / low
  • Expiratory minute volume: high / low
  • Tidal volume: high / low
  • Apnea-alarm time: 15 to 60 sec
  • Spontaneous breathing frequency: high
  • Inspiratory O2-concentration: high / low
  • Inspiratory breathing gas temperature: high
  • EtCO2: high / low

Performance Data

  • Maximum (continuous) inspiratory flow: 250 L/min
  • Valve response time T0…90: ≤ 5 ms
  • Control principle: time-cycled, volume-controlled, pressure limited
  • Safety valve opening pressure: 120 mbar (or hPa or cmH2O)
  • Emergency valve: automatically enables spontaneous breathing with filtered ambient air if air and O2 supply should fail.
  • Automatic gas switch-over function if O2 supply fails
  • Output for pneumatic medication nebulizer: synchronized with inspiration
  • Leak compensation:
    • optimized patient-ventilator synchrony adjusts the flow trigger and the inspiratory termination criteria for leaks.
    • tube application: up to 10L/min
    • NIV VC-modes: up to 25 L/min
    • NIV PC-modes: unlimited

Operating Data

  • Mains power connection: 100 V to 240 V, 50/60 Hz
  • Current consumption: max. 1.3 A at 240 V, max. 3.4 A at 100 V
  • Battery: internal typically 45 min (optional extension up to 5 h)
  • Turbine exchange interval: 8 years, with no limit in operating hours during this interval

Digital Machine Outputs

  • Digital output and input via an RS 232 C interface
  • Dräger MEDIBUS and MEDIBUS.X

Gas Supply

  • Air Turbine technology
  • O2 gas supply 3 bar (43.5 psi) – 10 % up to 6 bar (87 psi)

Dimensions and Weights

  • Dimensions W x H x D (without trolley) 460 x 383 x 364 ±2 mm (18.11 x 15.08 x 14.33 ±0.08 inch)
  • Weight (basic device) approx. 26 kg (57.3 lbs) without trolley
  • Diagonal screen size 12″ TFT color touch screen
