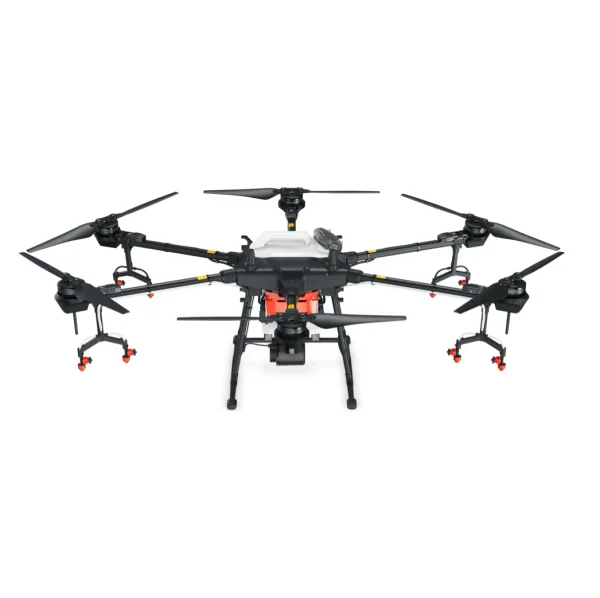

PRODUCT SPECIFICATIONS
AIRFRAME
Max Diagonal Wheelbase: 1883 mm
Dimensions:
2509×2213×732 mm (Arms and propellers unfolded)
1795×1510×732 mm (Arms unfolded and propellers folded)
1100×570×732 mm (Arms and propellers folded)
SPRAYING SYSTEM- SPRAY TANK
Volume Rated: 15 L, Full: 16 L
Operating Payload Rated: 15 kg, Full: 16 kg
SPRAYING SYSTEM – NOZZLE
Model: XR11001VS (Standard), XR110015VS (Optional, purchase separately)
Quantity: 8
Max Spray Rate: XR11001VS: 3.6 L/min, XR110015VS: 4.8 L/min
Spray width: 4-6.5 m (8 nozzles, at the height of 1.5-3 m above crops)
Droplet Size:
XR11001VS：130 – 250 μm
XR110015VS：170 – 265 μm
(Subject to operating environment and spray rate)
SPRAYING SYSTEM – FLOW METER
Measurement Range: 0.45-5 L/min
Error: < ±2%
Measurable Liquid: CConductivity > 50 mS/cm
(Liquids such as water or pesticides that contains water)
FLIGHT PARAMETERS
Operating Frequency:
2.4000 GHz-2.4835 GHz
5.725 GHz-5.850 GHz *
EIRP:
2.4 GHz
SRRC/ CE / MIC/ KCC: < 20 dBm
FCC / NCC: < 26 dBm
5.8 GHz
SRRC/ NCC/ FCC: < 26 dBm
Total Weight (Excluding battery): 18.5 kg
Standard Takeoff Weight: 39.5 kg
Max Takeoff Weight: 40.5 kg (At sea level)
Max Thrust-Weight Ratio: 2.05 (Takeoff weight of 39.5 kg)
Hovering Accuracy (With strong GNSS signal): D-RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm
D-RTK disabled: Horizontal: ±0.6 m, Vertical: ±0.3 m (Radar module enabled: ±0.1 m)
RTK/ GNSS Operating Frequency:
RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, Galileo E1/E5
GNSS: GPS L1, GLONASS F1, Galileo E1
Battery: DJI-approved battery pack (AB2-17500mAh-51.8V)
Max Power Consumption: 5600 W
Hovering Power Consumption: 4600 W (Takeoff weight of 39.5 kg)
Hovering Time:
18 min (Takeoff weight of 24.5 kg with a 17500 mAh battery)
10 min (Takeoff weight of 39.5 kg with a 17500 mAh battery)
Max Tilt Angle: 15°
Max Operating Speed: 7 m/s
Max Flying Speed: 10 m/s (With strong GNSS signal)
Max Wind Resistance: 8 m/s
Max Service Ceiling Above Sea Level: 2000 m
Recommended Operating Temperature: 0° to 40°C (32° to 104°F)
* To comply with local laws and regulations, this frequency is not available in some countries or regions.
** Hovering time acquired at sea level with wind speeds lower than 3 m/s.
FPV CAMERA
FOV: Horizontal: 98°, Vertical: 78°
Resolution: 1280×960 30 fps
FPV Spotlight: FOV: 110°, Max brightness: 12 lux at 5 m of direct light
DBF IMAGING RADAR
Model: RD2418R
Operating Frequency: SRRC (China)/ CE (Europe)/ FCC (United States): 24.00 GHz-24.25 GHz
Power Consumption: MIC (Japan) / KCC (Korea): 24.05 GHz-24.25 GHz
EIRP: 15 W
Altitude Detection & Terrain Follow: MIC/ KCC/ CE/ FCC: 20 dBm
Obstacle Avoidance System: Altitude detection range: 1-30 m
IP Rating: Stabilization working range: 1.5-15 m
*The effective radar range varies depending on the material, position, shape, and other properties of the obstacle.
PROPULSION SYSTEM – MOTOR
Stator Size: 100×15 mm
KV: 75 rpm/V
Max Thrust: 13.5 kg/rotor
Max Power: 2400 W/rotor
Weight: 616 g
PROPULSION SYSTEM – FOLDABLE PROPELLERS (R3390)
Diameter × Pitch: 33×9 in
Weight (Single propeller): 90 g
PROPULSION SYSTEM – ESC
Max Working Current (Continuous): 40 A
Max Working Voltage: 58.8 V (14S LiPo)
REMOTE CONTROLLER
Model: GL300N
Operating Frequency:
2.4000 GHz-2.4835 GHz
5.725 GHz- 5.850 GHz*
Effective Transmission Distance (Unobstructed, free of interference):
SRRC/ MIC/ KCC/ CE: 3 km
NCC/ FCC: 5 km
EIRP:
2.4 GHz
SRRC/ CE/ MIC/ KCC: < 20 dBm
FCC / NCC: < 26 dBm
5.8 GHz
SRRC/ NCC/ FCC: < 26 dBm
Display:
5.5-inch screen, 1920×1080, 1000 cd/m2, Android system 4G RAM＋16G ROM storage
Power Consumption: 16 W (Typical value)
Operating Temperature: -10° to 40°C (14° to 104°F)
Storage Temperature:
Less than three months: -20° to 45°C (68° to 113°F)
More than 3 months: 22° to 28°C (70° to 82°F)
Charging Temperature: 5° to 40°C (40° to 104°F)
* To comply with local laws and regulations, this frequency is not available in some countries or regions.
REMOTE CONTROLLER INTELLIGENT BATTERY
Model: WB37-4920mAh-7.6V
Battery Type: 2S LiPo
Capacity: 4920 mAh
Voltage: 7.6 V
Energy: 37.39 Wh
Charging Temperature: 5° to 40°C (40° to 104°F)
REMOTE CONTROLLER CHARGING HUB
Model: WCH2
Input Voltage: 17.3-26.2 V
Output Voltage and Current: 8.7 V, 6 A
Operating Temperature: 5° to 40°C (40° to 104°F)
REMOTE CONTROLLER POWER ADAPTER
Model: A14-057N1A
Input Voltage: 100-240 V, 50/60 Hz
Output Voltage: 17.4 V
Rated Power: 57 W
