With the Smart Agriculture Cloud Platform, users can perform cloud-based mapping of orchard and farmland scenarios to generate smart flightpaths. This platform is equipped with an AI recognition system to patrol fields, identify growth, monitor disease or pests, and monitor agricultural conditions efficiently. Pairing this system with the DJI P4 Multispectral allows users to apply solutions based on specific variables according to an automatically-generated farmland prescription map.

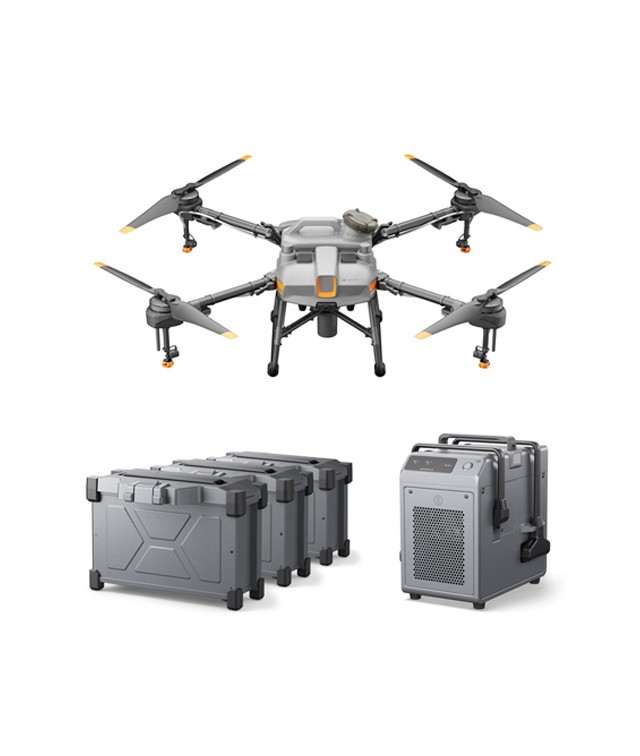

| Technical Specifications for DJI Agras T10 Agriculture Drone | |
|---|---|
| Hourly operation efficiency | 15 acres |
| High-precision radar | √ Spherical Omnidirectional Radar System |
| Remote control planning precision | √ (RTK/GNSS) |
| Removing air from pipes | √ One button Air Discharge |
| 3D operation planning of the AI engine | √ |
| High-precision flowmeter | √ (Dual-channel electromagnetic flowmeter with an error of ±2%) |
| Level gauge | Single-point level gauge |
| Maximum spray flow | 1.8 L/min (with standard XR11001 nozzle) 2.4 L/min (with optional XR110015 nozzle） |
| Pesticide tank installation method | Quick plugging pesticide tank |
| Battery installation method | Quick plug-and-play battery |
| One remote control for multiple drones | √ (one remote control for three drones) |
| D-RTK technology | √ |
| Up-looking radar module | √ |
| Flight dotting function | √ |
| Smart cruising/return function | √ |
| Intelligent supply-point prediction | x |
| Coordinated turn function | √ |
| Forward-looking FPV | √ |
| Backward-looking FPV | √ |
| Branch targeting technology | x |
| Drone parameters | |
| Total weight (without batteries) | 13 kg |
| Rated take-off weight | 24.8 kg (near sea level) |
| Hovering precision (with good GNSS signal) | With D-RTK enabled: ±10 cm (horizontal) and ±10 cm (vertical) With D-RTK disabled: ±0.6m (horizontal) and ±0.3m (vertical) (with the radar function enabled: ±0.1 m） |
| RTK/GNSS frequency bands | RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5 GNSS: GPS L1, GLONASS F1, and Galileo E1 |
| Maximum power consumption | 3,700 W |
| Hovering power consumption | 3,200 W |
| Hovering time | 19 min (@9,500 mAh & takeoff weight of 16 kg) 8.7 min (@9,500 mAh & takeoff weight of 26 kg) |
| Maximum pitch angle | 15° |
| Maximum operating flight speed | 7 m/s |
| Maximum level flight speed | 10 m/s (with good GNSS signals) |
| Maximum endurable wind speed | 8 m/s |
| Maximum flight altitude | 4,500m *Reduce the pesticide amount by 12% with each increase of 1,000 meters of altitude. |
| Recommended operating ambient humidity | < 93% |
| Recommended operating ambient temperature | 0℃ to 45℃ |
| Rack parameters | |
| Maximum rotor distance | 1,480 mm |
| Dimensions | 1,958 mm × 1,833 mm × 553 mm (with arms and blades extended) 1,232 mm × 1,112 mm × 553 mm (with arms extended and blades folded) 600 mm × 665 mm × 580 mm (with arms folded) |
| Power system – Motor | |
| Stator size | 100×10 mm |
| KV value | 84 rpm/V |
| Maximum pulling force | 11.2 kg/rotor |
| Maximum power | 2,000 W/rotor |
| Weight | 527 g |
| Power system – Propellers | |
| Diameter × pitch | 33×9 inch |
| Weight (a single blade) | 92 g |
| Power system – ESC | |
| Maximum operating current (continuous) | 32 A |
| Maximum operating voltage | 60.9 V (14S LiPo) |
| FPV camera | |
| FOV | Horizontal: 129°, vertical:82° |
| Resolution | 1,280×720 15-30 fps |
| FPV spotlight | |
| Maximum light intensity | 13.2 lux @ 5-meter direct light |
| Spraying system – Operation tank | |
| Operation tank volume | 8 L at full load |
| Operating load | 8 kg at full load |
| Spraying system – Nozzles | |
| Sprayer model | SX11001VS (standard) SX110015VS (optional) XR11002VS (optional) |
| Number of sprayers | 4 |
| Maximum spray flow | SX11001VS: 1.8 L/min SX110015VS: 2.4 L/min XR11002VS:3 L/min |
| Diameter of atomized particle | SX11001VS : 130 – 250 μm SX110015VS : 170 – 265 μm XR11002VS: 190 – 300 μm (depending on the actual operating environment, spraying flow and other factors) |
| Maximum effective spray width | 3 – 5.5m (with 4 sprayers and a distance of 1.5 – 3 meters to crops) |
| Spraying system – Water pump | |
| Water pump model | Diaphragm pump |
| Operating voltage | 15 V |
| Maximum flow | 1.5 L/min ×1 |
| Spraying system – Flowmeter | |
| Flow measurement range | 0.25 – 20 L/min |
| Flow measurement error | < ±2% |
| Measurable liquid | Conductivity > 50 μS/cm. Typical liquid: Tap water, aqueous organic or inorganic pesticides, and the like |
| Omnidirectional obstacle avoidance radar | |
| Model | RD2424R |
| Operating frequency | SRRC/NCC/FCC: 24.05 to 24.25 GHz MIC/KCC/CE: 24.05 to 24.25 GHz |
| Operating power consumption | 12 W |
| Equivalent isotropic radiated power (EIRP) | SRRC: < 13 dBm; NCC/MIC/KCC/CE/ FCC:< 20 dBm |
| Height hold and terrain following | Height measurement range: 1 – 30m Height hold range: 1.5 – 15m Maximum slope in mountain mode:35° |
| Obstacle avoidance system | Perceivable distance: 1.5 – 30m FOV: 360° (horizontal), ±15° (vertical) Conditions of use: The relative flight height of the drone is above 1.5m and the speed below 7 m/s Safe distance: 2.5m (the distance between the tip of the blade and the obstacle after the drone is braked and hovering stably) Obstacle avoidance direction: Horizontally omnidirectional obstacle avoidance |
| Protection class | IP67 |
| Up-looking radar | |
| Model | RD2414U |
| Operating frequency | SRRC/NCC/FCC: 24.05 to 24.25 GHz MIC/KCC/CE:24.05 to 24.25 GHz |
| Overhead obstacle avoidance | Perceivable distance: 1.5 – 10m FOV: 80° Conditions of use: The drone flies for a relative distance over 1.5 m in the mode of take-off, landing and route climb mode Safe distance: 2m (the distance between the obstacle and the highest point on the top of the drone) Obstacle avoidance direction: Above the drone |
| Protection class | IP67 |
| Equivalent isotropic radiated power (EIRP) | SRRC:< 13 dBm;NCC/MIC/KCC/CE/ FCC:< 20 dBm |
| Operating power consumption | 4 W |
| Battery | |
| Model | BAX501-9500mAh-51.8V |
| Weight | About 3.8 kg |
| Discharge rate | 11.5C |
| Protection class | IP54 + board-level embedment protection |
| Capacity | 9,500 mAh |
| Voltage | 51.8 V |
| Remote control | |
| Model | RM500-ENT |
| Operating frequency of OcuSync 2.0 | 2.4000 to 2.4835 GHz 5.725 to 5.850 GHz |
| Effective signal distance of OcuSync 2.0 (without interference and blockage) | SRRC: 5 km; MIC/KCC/CE: 4 km; FCC: 7 km (measured at the operating height of 2.5m) |
| EIRP of OcuSync 2.0 | 2.4 GHz SRRC/CE/MIC/KCC: 18.5 dBm; FCC: 29.5 dBm; 5.8 GHz SRRC: 28.5 dBm; FCC: 20.5 dBm CE:12.5 dBm |
| Wi-Fi Protocols | Wi-Fi Direct, Wireless Display, and 802.11a/g/n/ac. 2 × 2 MIMO Wi-Fi is supported |
| Wi-Fi operating frequency | 2.4000 to 2.4835 GHz 5.150 to 5.250 GHz 5.725 ~ 5.850 GHz |
| Wi-Fi EIRP | 2.4 GHz SRRC/CE: 18.5 dBm; FCC/MIC/KCC: 20.5 dBm; 5.2 GHz SRRC/FCC/CE/MIC: 14 dBm; KCC: 10 dBm; 5.8 GHz SRRC/FCC: 18 dBm; CE/KCC: 12 dBm; |
| Bluetooth protocol | Bluetooth 4.2 |
| Bluetooth operating frequency | 2.4000 to 2.4835 GHz |
| Bluetooth EIRP | SRRC/MIC/FCC/CE/KCC:6.5 dBm |
| Positioning | GPS + GLONASS |
| Display | 5.5-inch screen with a resolution of 1,920×1,080 and brightness of 1,000 cd/m², and Android OS |
| Operating memory (RAM) | 4GB LPDDR4 |
| Storage space (ROM) | 32 GB + scalable storage space, and a microSD card with the capacity up to 128 GB and transfer speed of UHS-I Speed Grade 3 is supported |
| HDMI | HDMI 1.4 |
| Supported drones | T30 and T10 crop protection drones |
| Operating power consumption | 18 W |
| Operating ambient temperature | -10℃ to 40℃ |
| Storage ambient temperature | -30℃ to 60℃ (within 1 month) -30℃ to 45℃ (1 to 3 months) -30℃ to 35℃ (3 to 6 months) -30℃ to 25℃ (more than 6 months) (with the capacity of built-in batteries at 40 to 60%) |
| Charging ambient temperature | 5℃ to 40℃ |
| Built-in battery of remote control | |
| Built-in battery | 18650 lithium ion battery (5,000 mAh at 7.2V) |
| Battery life | 2 hours |
| Charging method | Standard 12V/2A USB quick charger |
| Charging time | 2.5 hours (with the standard 12V/2A USB quick charger and the remote control powered off) |
| Power supply current/voltage of remote control USB-A port | 5 V / 1.5 A |
| External smart battery of remote control | |
| Model | WB37-4,920mAh-7.6V |
| Battery type | 2S LiPo |
| Capacity | 4,920 mAh |
| Voltage | 7.6 V |
| Capacity | 37.39 Wh |
| Charging ambient temperature | 5℃ to 40℃ |
| Battery life | 2 hours |
| External smart battery charging manager of remote control | |
| Model | WCH2 |
| Input voltage | 17.3 – 26.2 V |
| Output voltage and current | 8.7V and 6A |
| Operating ambient temperature | 5℃ to 40℃ |
| Power adapter of external smart battery charging manager | |
| Model | A14-057N1A |
| Input voltage | 100 to 240V and 50/60 Hz |
| Output voltage | 17.4 V |
| Rated power | 57 W |
| T-Series Distribution System 3.0 (10kg) | |
| Weight of distribution system | 3.1kg |
| Maximum opening area | 44.6 cm² |
| Applicable materials | Dry solid particles with a diameter of 0.5 to 5 mm |
| Volume of distribution tank | 12L |
| Maximum internal load of distribution tank | 10kg |
| Protection class | IP67 |
| Input voltage | Power: 60V Control:15V |
| Maximum power | 60V@250W 15V@50W |
| Recommended operating ambient temperature | 0℃ to 40℃ |
| Dimensions | 405×245×375mm |
| Maximum rotation speed | 1,300 RPM |
| T10 smart charging manager | |
| Dimensions | 300×280×230 mm |
| Total weight | 8.1 kg |
| Input voltage | 100-264 Vac |
| Output voltage | 40-60 V |
| Rated power | 3,600 W |
| Charging current | 50 A |
| Charging time | 7 to 10 min |
| Charging voltage precision | +/-0.1 V |
| Charging current precision | +/-1 A |
| Number of output channels | 2 |
| Protection functions | Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection |
| Charging ambient temperature | -20℃ to 45℃ |
| Charging safety | AC wire protection, power wire protection, and charge connector protection |
